Product Features

Installation

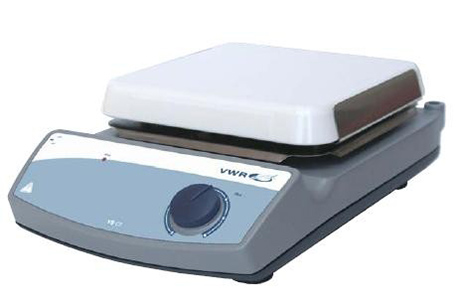

Place your VWR Series 500 microprocessor-controlled hotplate, stirrer, hotplate-stirrer on a level bench or table, away from explosive vapors. Be sure the unit is well clear of papers, drapery and curtains, and other flammable materials. The 120v and 230v units are supplied with a 3-prong power cord that should be plugged into a standard 3-prong grounded outlet.

Maintenance and Servicing

Your VWR Series 500 Microprocessor-controlled hotplate/stirrer/hotplate-stirrers are built for long, trouble-free, dependable service. It needs no user maintenance beyond keeping the surface of the top plate and the control panel clean. Spills should be removed promptly after the unit has cooled down. Do not use any cleaning agent or solvent on the front panel which is abrasive or harmful to plastics, nor one which is flammable.

Specifications

• Catalog No: 14217-600 - 120v / 14217-606 - 230v
• Dimensions: W x H x D - 8-1/4" x 5" x 12" - (20.96cm x 12.7cm x 30.48cm)
• Weight Capacity: 25 lbs.
• Top plate: Ceramic 7 x 7
• Voltage: 120V/230V
• Current: 120v - 7 amps
• 230v - 4 amps
• Fuses: 120v - 5mm x 20mm 10 amp quick acting / 230v - 5mm x 20mm, 5 amp quick acting
• Power: 800 watts
• Temp. Accuracy: +/- 3% at 400oC w/temperature probe / +/- 1% below 100oC w/temperature probe
• Controls: 2-way rocker switch
• Timer: Digital, LED, 1 second to 9999 / minutes (increased in 1 second increments) / Up/Down Keypad for setpoint control
• Temperature: ambient to 400oC / Digital, LED, Up/Down Keypad for setpoint control / On/Off keypad
• Ship weight: 10.5 lbs. (5kg)
