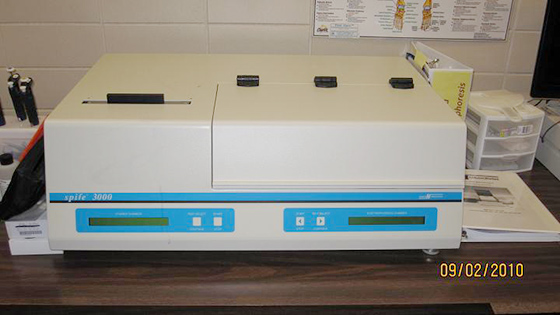

HELENA SPIFE3000

Product Features

Test Types

Proteins, Immunofixation, High Resolution Proteins, Acid Hemoglobins, Alkaline Hemoglobins, Cholesterol Profile (HDL, VLDL, LDL, Lp(a)), CK Isoenzymes, LD Isoenzymes, Alkaline Phosphatase Isoenzymes, Lipoproteins, IgG Isoelectric Focusing

  • Displays: Two, 2 x 40 character LCD.
  • Timer Range: 00:00 to 99:59 min: sec in 1 second increments.
  • Chamber Temperature Range: 50° to 144°F (10° to 62°C).
  • Dryer Temperature Range: 86° to 158°F (30° to 70°C).
  • Input Power: 120 Vac (Cat. No. 1088) or 240 Vac (Cat. No. 1089); 50/60 Hz.
  • Voltage Tolerance: 3%.
  • Power Range: 2000 VA.
  • Isolation: 4000 VRMS.
  • Leakage Current:  Less than 50: A.
  • Operating Environment:  59° to 80°F (15° to 27°C).
  • Dimensions: 12" H x 36" W x 21" D (30 x 91 x 53 cm).
  • Weight: 78 lbs. (35.4 kg).

Epson V700 Scanner

Electrophoresis Auto Sample Handler

The Electrophoresis Auto Sample Handler provides automated front-end specimen processing for SPIFE 2000/3000, easily accommodating all standard blood collection tubes. The Auto Sample Handler is equipped with a liquid level sensor, and provides positive patient ID with a barcode reader with LIS interface. The Auto Sample Handler transfers specimens directly from primary tubes to the applicator base or tray in efficient preparation for SPIFE 3000. The Auto Sample Handler can also automatically prepare dilutions for IFEs.

• Primary tube sampling with liquid level sensor
• Barcode reader with LIS interface for positive ID
• Automatically performs dilutions for IFEs
• Samples loaded to barcoded sample tray ready for application
• Interfaces to QuickScan 2000 or LIS for workload listing

Electrophoresis Auto Sampler Specifications

Test Tubes: 13-16 mm diameter; 75-100 mm height.
Minimum Sample Volume: 500 μL
Operating Environment: 59° to 81° F (15° to 27°C).
Dimensions: 19" H x 30" W x 26" D (48 x 76 x 66 cm).
Computer System: Integral AT-compatible with 3½" disk drive.
Interface: 3-wire RS232, bidirectional, LIS or QuickScan 2000.
Bar Codes: Code 3 of 6 (Code 9) (alphanumeric), Codabar (numeric), Interleaved 2 of 5 (numeric), L reduced (numeric), Code 128 (alphanumeric).
Input Power: 120/240 (85-264) Vac, 50/60 Hz.
Display: 2x40-character LCD.
Weight: 100 lbs. (45.4 kg).
